The Leading China Manufacturer to Develop PEEK Sheet

Size specification: thickness 1mm~110mm

Contact us

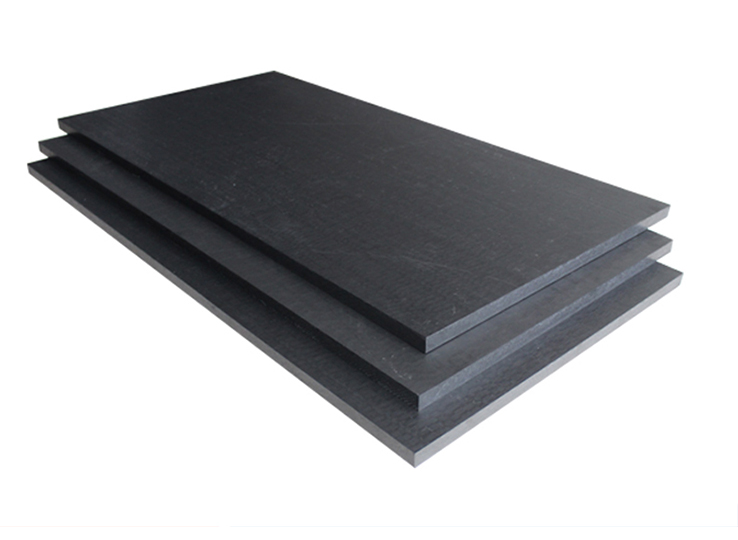

PEEK Sheet

PEEK is a high-performance thermoplastic with toughness, durability, firmness, and creep resistance. It has excellent heat resistance, chemical resistance, hydrolysis resistance, as well as excellent wear resistance and dynamic fatigue resistance. PEEK can operate at continuous high temperatures up to (260 º C) without permanent performance degradation, while maintaining stable electrical performance, making it an excellent alternative to fluoropolymers in aggressive environments. PEEK also exhibits very low smoke and toxic gas emissions when exposed to flames.

PEEK board is also iPEEK ® The standard shapes and PEEK sheets produced have a wide demand in many industries, especially in the semiconductor industry.

iPEEK ® The Polyether ether ketone sheet (plate) is produced by extrusion or compression molding. Our extruded PEEK sheets (boards) have the world's largest width of 1250mm, including PEEK resin natural color, PEEK black, 30% glass fiber filled PEEK, 30% carbon fiber filled PEEK, and bearing grade PEEK boards.

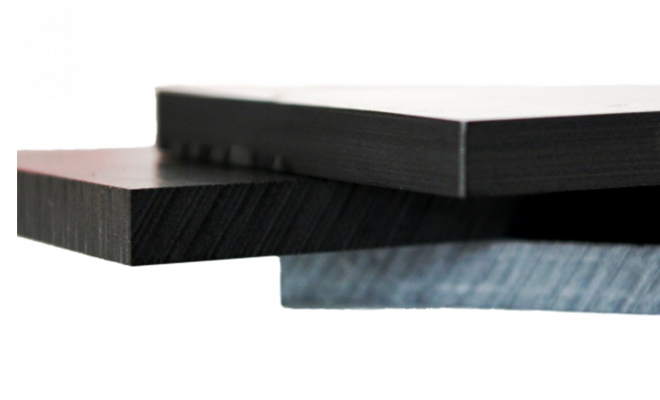

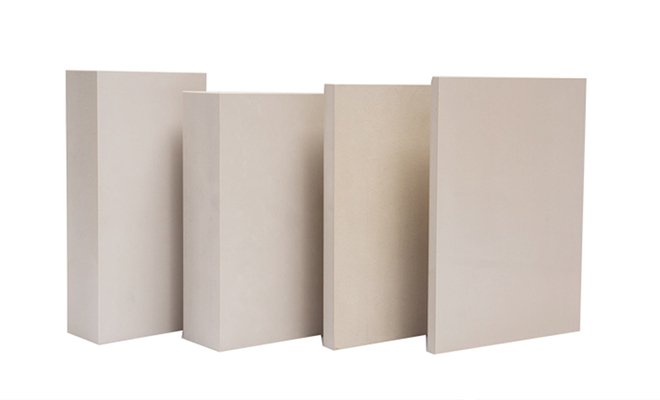

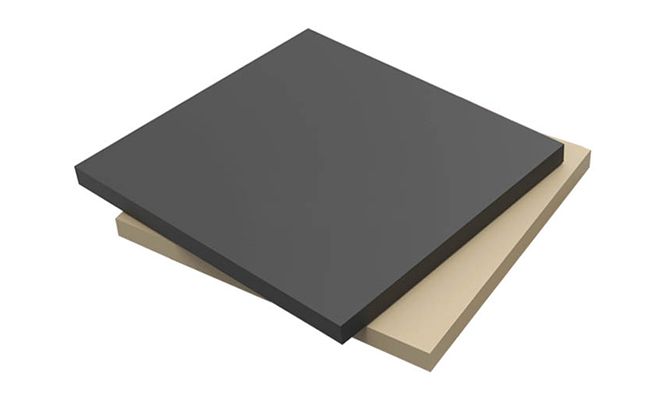

Main Advantages of PEEK Sheet

● Good wearing performance with or without load

● High service temperature(long term 260℃)

● Good mechanical strength

● Good chemical resistance & Hydrosis resistance

● FDA approved

PEEK Application

Polyether ether ketone is a thermoplastic substance that was created in 1978. Eventually, it came to market in the 1980s and has seen applications in industries as diverse as below:

Aerospace

Car

Medical

Railway

Oil and Gas

Semiconductor

PEEK Sheet Technical Data

Item Type Dimensions: H x W x L Colour Density Reference weight(Kg) Inventory
1 PEEK-SHEET T1mm*500mm*1250mm NAT/BLK 1.32g/cm3 1 Standing stock
2 PEEK-SHEET T2mm*500mm*1250mm NAT/BLK 1.32g/cm3 2.1 Standing stock
3 PEEK-SHEET T3mm*600mm*1250mm NAT/BLK 1.32g/cm3 3.7 Standing stock
4 PEEK-SHEET T4mm*600mm*1250mm NAT/BLK 1.32g/cm3 4.8 Standing stock
5 PEEK-SHEET T5mm*600mm*1250mm NAT/BLK 1.32g/cm3 5.75 Standing stock
6 PEEK-SHEET T6mm*620mm*1250mm NAT/BLK 1.32g/cm3 6.55 Standing stock
7 PEEK-SHEET T8mm*620mm*1250mm NAT/BLK 1.32g/cm3 8.74 Standing stock
8 PEEK-SHEET T10mm*620mm*1250mm NAT/BLK 1.32g/cm3 10.95 Standing stock
9 PEEK-SHEET T12mm*620mm*1250mm NAT/BLK 1.32g/cm3 13.11 Standing stock
10 PEEK-SHEET T15mm*620mm*1250mm NAT/BLK 1.32g/cm3 16.4 Standing stock
11 PEEK-SHEET T18mm*620mm*1250mm NAT/BLK 1.32g/cm3 19.65 Standing stock
12 PEEK-SHEET T20mm*620mm*1250mm NAT/BLK 1.32g/cm3 21.85 Standing stock
13 PEEK-SHEET T25mm*620mm*1250mm NAT/BLK 1.32g/cm3 27.3 Standing stock
14 PEEK-SHEET T30mm*620mm*1250mm NAT/BLK 1.32g/cm3 32.78 Standing stock
15 PEEK-SHEET T35mm*620mm*1250mm NAT/BLK 1.32g/cm3 38.25 Standing stock
16 PEEK-SHEET T40mm*620mm*1250mm NAT/BLK 1.32g/cm3 42.7 Standing stock
17 PEEK-SHEET T45mm*620mm*1250mm NAT/BLK 1.32g/cm3 47.5 Standing stock
18 PEEK-SHEET T50mm*620mm*1250mm NAT/BLK 1.32g/cm3 53.4 Standing stock
19 PEEK-SHEET T60mm*620mm*1250mm NAT/BLK 1.32g/cm3 64 Standing stock
20 PEEK-SHEET T70mm*620mm*1250mm NAT/BLK 1.32g/cm3 74.8 Standing stock
21 PEEK-SHEET T80mm*620mm*1250mm NAT/BLK 1.32g/cm3 85.5 Standing stock
22 PEEK-SHEET T90mm*620mm*1250mm NAT/BLK 1.32g/cm3 96.11 Standing stock
23 PEEK-SHEET T100mm*620mm*1250mm NAT/BLK 1.32g/cm3 107.85 Standing stock
24 PEEK-SHEET T120mm*620mm*1250mm NAT/BLK 1.32g/cm3 129.75 Customized
Item Type Dimensions: H x W x L Colour Density Reference weight(Kg) Inventory
1 PEEK GF-SHEET T6mm*620mm*1250mm NAT/BLK 1.51g/cm3 7.97 Customized
2 PEEK GF-SHEET T8mm*620mm*1250mm NAT/BLK 1.51g/cm3 10.66 Customized
3 PEEK GF-SHEET T10mm*620mm*1250mm NAT/BLK 1.51g/cm3 13.5 Customized
4 PEEK GF-SHEET T12mm*620mm*1250mm NAT/BLK 1.51g/cm3 15.9 Customized
5 PEEK GF-SHEET T15mm*620mm*1250mm NAT/BLK 1.51g/cm3 19.61 Customized
6 PEEK GF-SHEET T18mm*620mm*1250mm NAT/BLK 1.51g/cm3 23 Customized
7 PEEK GF-SHEET T20mm*620mm*1250mm NAT/BLK 1.51g/cm3 25.75 Customized
8 PEEK GF-SHEET T25mm*620mm*1250mm NAT/BLK 1.51g/cm3 31.86 Customized
9 PEEK GF-SHEET T30mm*620mm*1250mm NAT/BLK 1.51g/cm3 38 Customized
10 PEEK GF-SHEET T35mm*620mm*1250mm NAT/BLK 1.51g/cm3 44.15 Customized
11 PEEK GF-SHEET T40mm*620mm*1250mm NAT/BLK 1.51g/cm3 50.25 Customized
12 PEEK GF-SHEET T45mm*620mm*1250mm NAT/BLK 1.51g/cm3 56.37 Customized
13 PEEK GF-SHEET T50mm*620mm*1250mm NAT/BLK 1.51g/cm3 75 Customized
Item Type Dimensions: H x W x L Colour Density Reference weight(Kg) Inventory
1 PEEK-ESD-SHEET T6mm*500mm*1000mm BLK 1.42g/cm3 7.97 Standing stock
2 PEEK-ESD-SHEET T8mm*500mm*1000mm BLK 1.42g/cm3 10.66 Standing stock
3 PEEK-ESD-SHEET T10mm*500mm*1000mm BLK 1.42g/cm3 13.5 Standing stock
4 PEEK-ESD-SHEET T12mm*500mm*1000mm BLK 1.42g/cm3 15.9 Standing stock
5 PEEK-ESD-SHEET T15mm*500mm*1000mm BLK 1.42g/cm3 19.61 Standing stock
6 PEEK-ESD-SHEET T18mm*500mm*1000mm BLK 1.42g/cm3 23 Standing stock
7 PEEK-ESD-SHEET T20mm*500mm*1000mm BLK 1.42g/cm3 25.75 Standing stock
8 PEEK-ESD-SHEET T25mm*500mm*1000mm BLK 1.42g/cm3 31.86 Standing stock
9 PEEK-ESD-SHEET T30mm*500mm*1000mm BLK 1.42g/cm3 38 Standing stock
10 PEEK-ESD-SHEET T35mm*500mm*1000mm BLK 1.42g/cm3 44.15 Standing stock
11 PEEK-ESD-SHEET T40mm*500mm*1000mm BLK 1.42g/cm3 50.25 Standing stock
12 PEEK-ESD-SHEET T45mm*500mm*1000mm BLK 1.42g/cm3 56.37 Standing stock
13 PEEK-ESD-SHEET T50mm*500mm*1000mm BLK 1.42g/cm3   Standing stock
14 PEEK-ESD-SHEET T60mm*500mm*1000mm BLK 1.42g/cm3 75 Standing stock

* Support customization of any size and shape

PEEK Sheet Data Download

Item Product information
1 REDSPOT-PEEK_Technical-data-sheet Download
2 REDSPOT-PEEK-30CF_Technical-data-sheet Download
3 REDSPOT-PEEK-30GF_Technical-data-sheet Download
4 REDSPOT-PEEK-mod_Technical-data-sheet Download
5 MSDS PEEK GF PEEK CF PEEK MOD iPEEK PEEK_Product-Sheet Download
