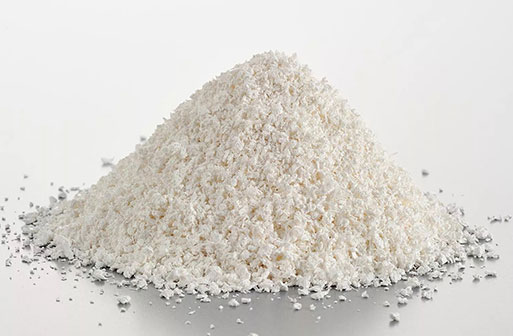

Contact usEnvironmentally friendly PEEK coatings can improve the wear resistance of components and extend their service life. PEEK thermoplastic powder with particle size ranging from 10 μ M-300 μ m. It can easily coat components of different shapes and exhibits excellent performance over a wide temperature range.
Contact us
Polyether ether ketone is a thermoplastic substance that was created in 1978. Eventually, it came to market in the 1980s and has seen applications in industries as diverse as below:
Aerospace
Car
Medical
Railway
Oil and Gas
Semiconductor
| Item | Test Standard or Instrument | Unit |
(100%PEEK) PEEK i330P |
(100%PEEK) PEEK i550P |
(100%PEEK) PEEK i770P |
| Tensile strength(23℃) | ISO-527 | MPa | 100 | 100 | 100 |
| Tensile elongation(23℃) | ISO-527 | % | 25 | 40 | 45 |
| Flexural strength(23℃) | ISO 178 | MPa | 170 | 160 | 160 |
| Flexural modulus(23℃) | ISO 178 | GPa | 4.1 | 4.1 | 4.1 |
| Izod Impact Strength | ISO 180/A | KJ/m-2 | 4.5 | 5.5 | 6.5 |
| Melt Index | ISO 1133 | g 10min-1 | 80 | 20 | 10 |
| Item | Product information | model | colour | Basic physical properties/application | |
| 1 | PEEK iPEEK® i770P | i770P | NAT | Melt Index=10g/cm3 ，powder | Download |
| 2 | PEEK iPEEK® i550P | i550P | NAT | Melt Index=20g/cm3 ，powder | Download |
| 3 | PEEK iPEEK® i330P | i330P | NAT | Melt Index=80g/cm3 ，powder | Download |
| 4 | PEEK iPEEK® i550PF | i550PF | NAT | Particle size=50μm ，powder | Download |
| 5 | PEEK iPEEK® i330PF | i330PF | NAT | 粒Particle size=50/75μm ，powder | Download |
