What is PEEK Parts?

Through product leadership, we aim to deliver value downstream to industries not currently experiencing the benefits of iPEEK® PEEK polymer. We accomplish this through a fundamental understanding of the industries we serve and ongoing dialog with our customers and partners, resulting in innovative part solutions at the intersection of customer needs and market opportunities.

Contact us

PEEK Application

Polyether ether ketone is a thermoplastic substance that was created in 1978. Eventually, it came to market in the 1980s and has seen applications in industries as diverse as below:

Aerospace

Car

Medical

Railway

Oil and Gas

Semiconductor

PEEK Material and Types of Its Modification

UNFILLED PEEK has excellent physical and chemical properties in its own right. Its characteristics of high strength, high toughness, corrosion resistance, high temperature resistance, good insulation, high purity basically meet most of the industrial environment.

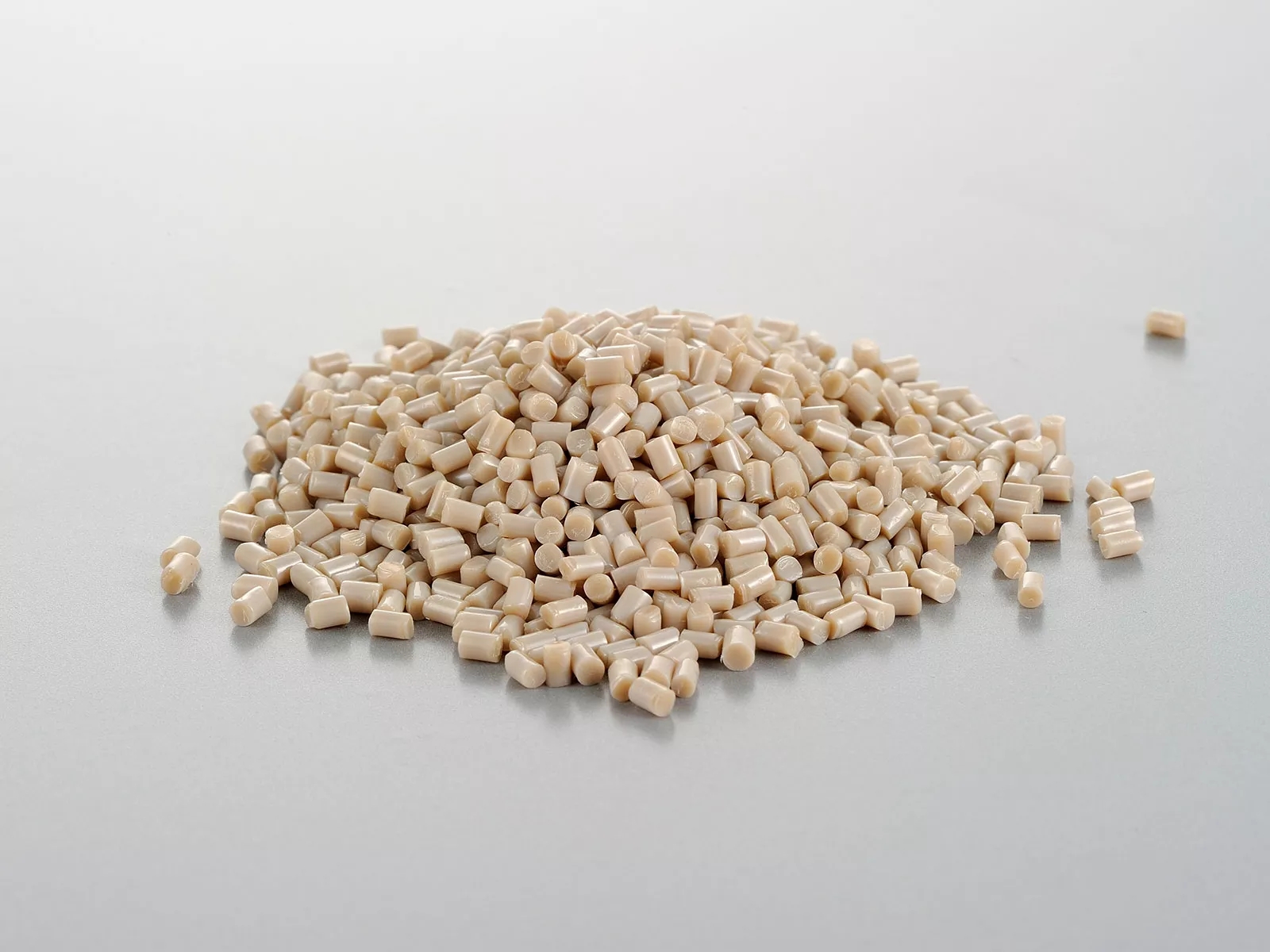

i550G (unfilled PEEK or natural PEEK)

i550G is one of unfilled or natural PEEK.Outstanding chemical resistance and a high operating temperature (up to 250℃/480F) round out PEEK profile.i550G has excellent dimensional stability combined with high creep stability, ensuring the suitability of PEEK for the most sophisticated machined parts.

i550GL30 ( 30% glass fiber filled PEEK)

Compared with unfilled PEEK(i550G),this 30% glass fiber reinforced PEEK material(i550GL30) exhibits increased mechanical strength and high rigidity.Plus, improved creep strength and dimensional stability are delivered by the 30% glass fiber filled PEEK.

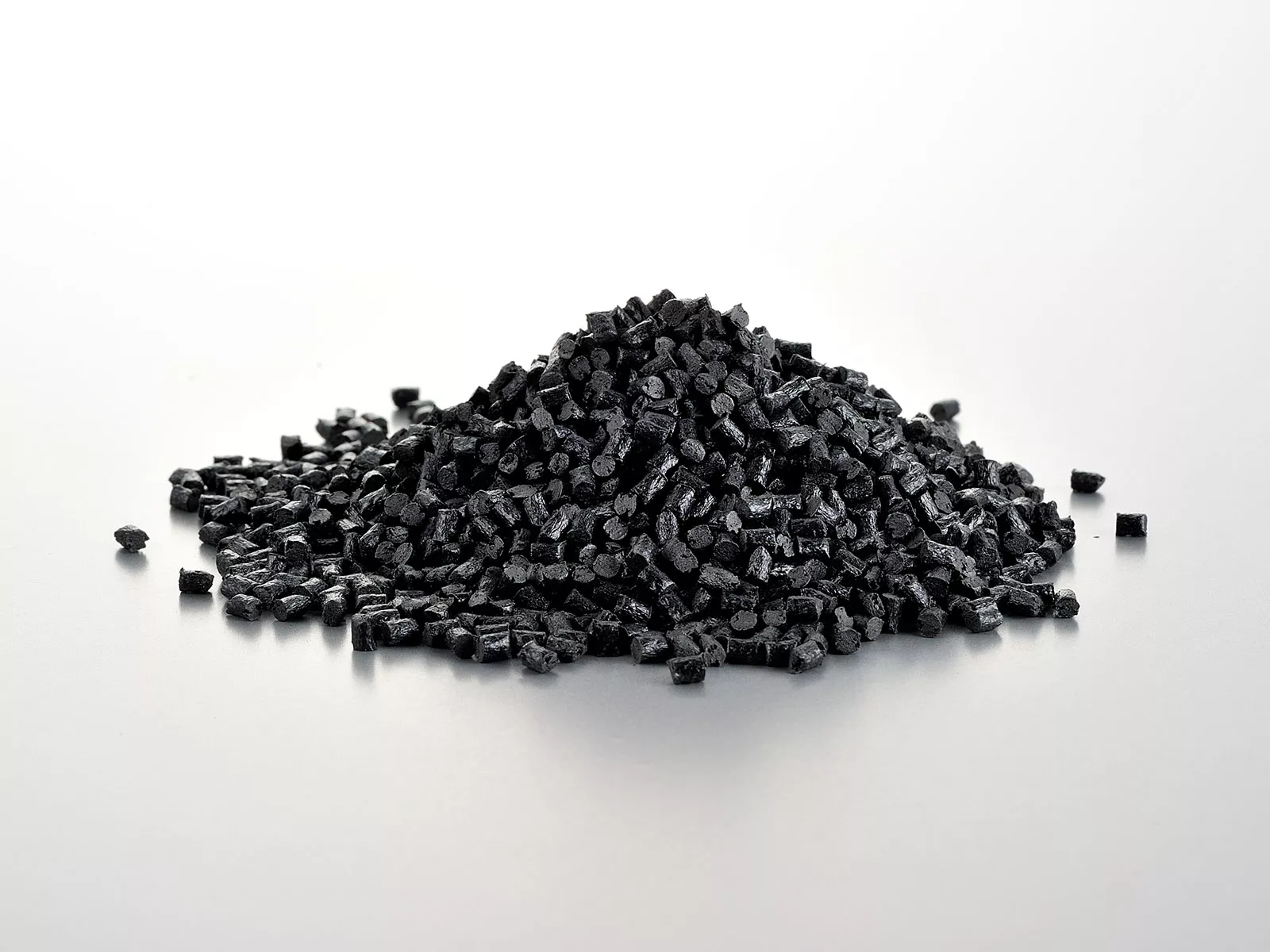

i550CA30 (30% carbon fiber filled PEEK)

i550CA30 is a 30% carbon filled PEEK material that is manufactured by iPEEK® PEEK. Its carbon fiber reinforcement supports the material a high level of rigidity. Carbon fiber reinforced PEEK demonstrates very high mechanical strength values.

i550FC30( FC wear-resistant series)

i550FC30 black is developed especially for bearing and sliding applications. HPV PEEK is based on a PEEK polymer that has been modified with 10% each of PTFE, graphite and carbon fibres. It combines the properties of a high-grade matrix material with special, wear-improving additives.

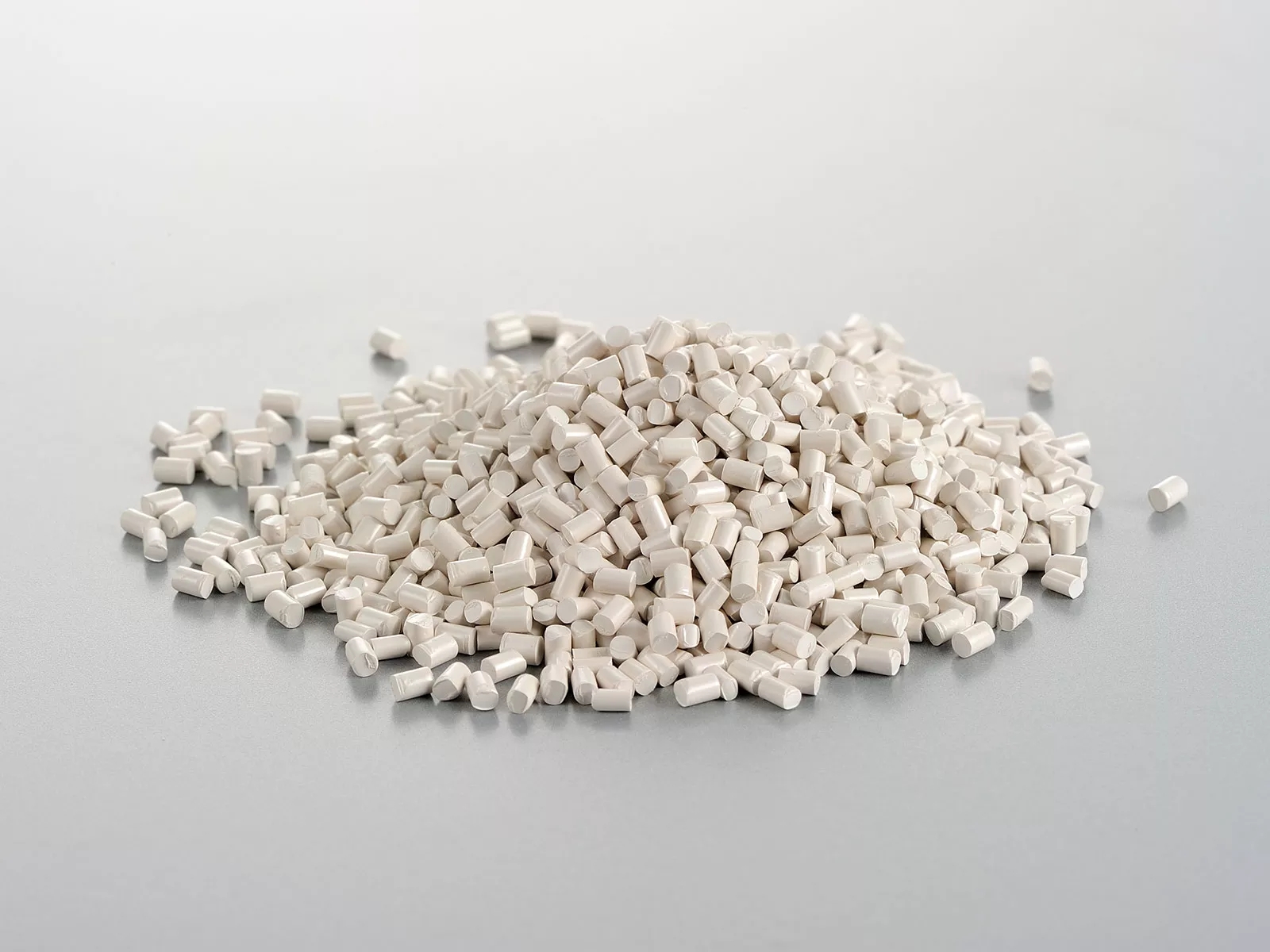

i770CM10(Ceramic PEEK)

Excellent dimensional stability

Nano ceramic filling, excellent dimensional stability, can be used for semiconductor chip test boxes, processing micropores without burrs and deformation.

iPEEK® ceramic PEEK retains the original toughness and strength of PEEK.

Commonly used brand: i770CM10 White,i770CM Tooth,i770CM Gingiva

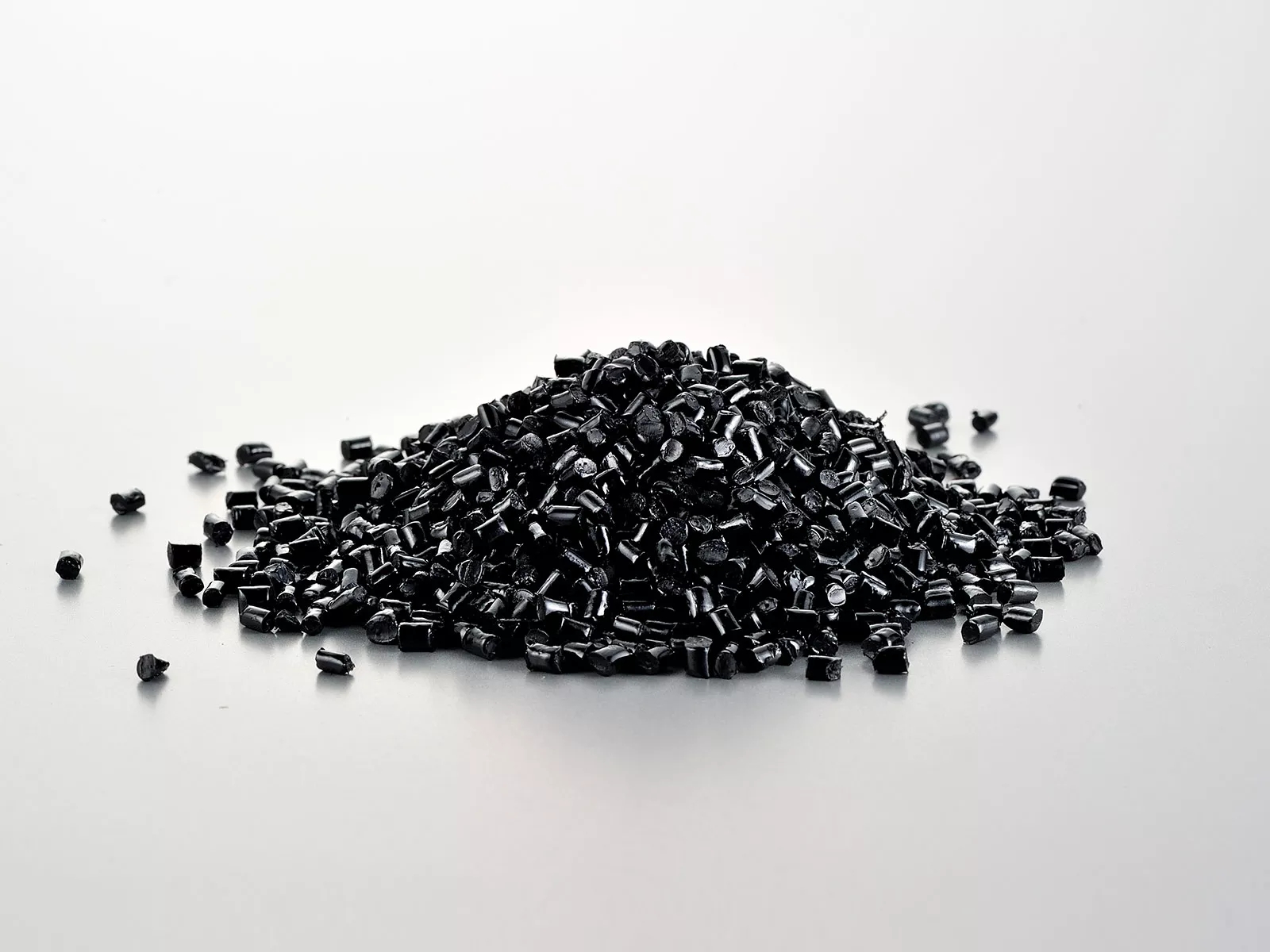

ESD i770G(Anti Static PEEK)

The surface resistivity is uniform and controllable, which can meet the conventional demand of 10 5-8 ohms/square meter.

Different formula schemes can be provided according to different application requirements. Commonly used brand: ESD i770G ,ESD i550G,ESD i330G

i770G LR (Low thermal conductivity)

The thermal conductivity is as low as Wm-1K-1, which can be used in applications that require thermal insulation.

Commonly used brand: i770G LR ,i550G LR ,i330G LR

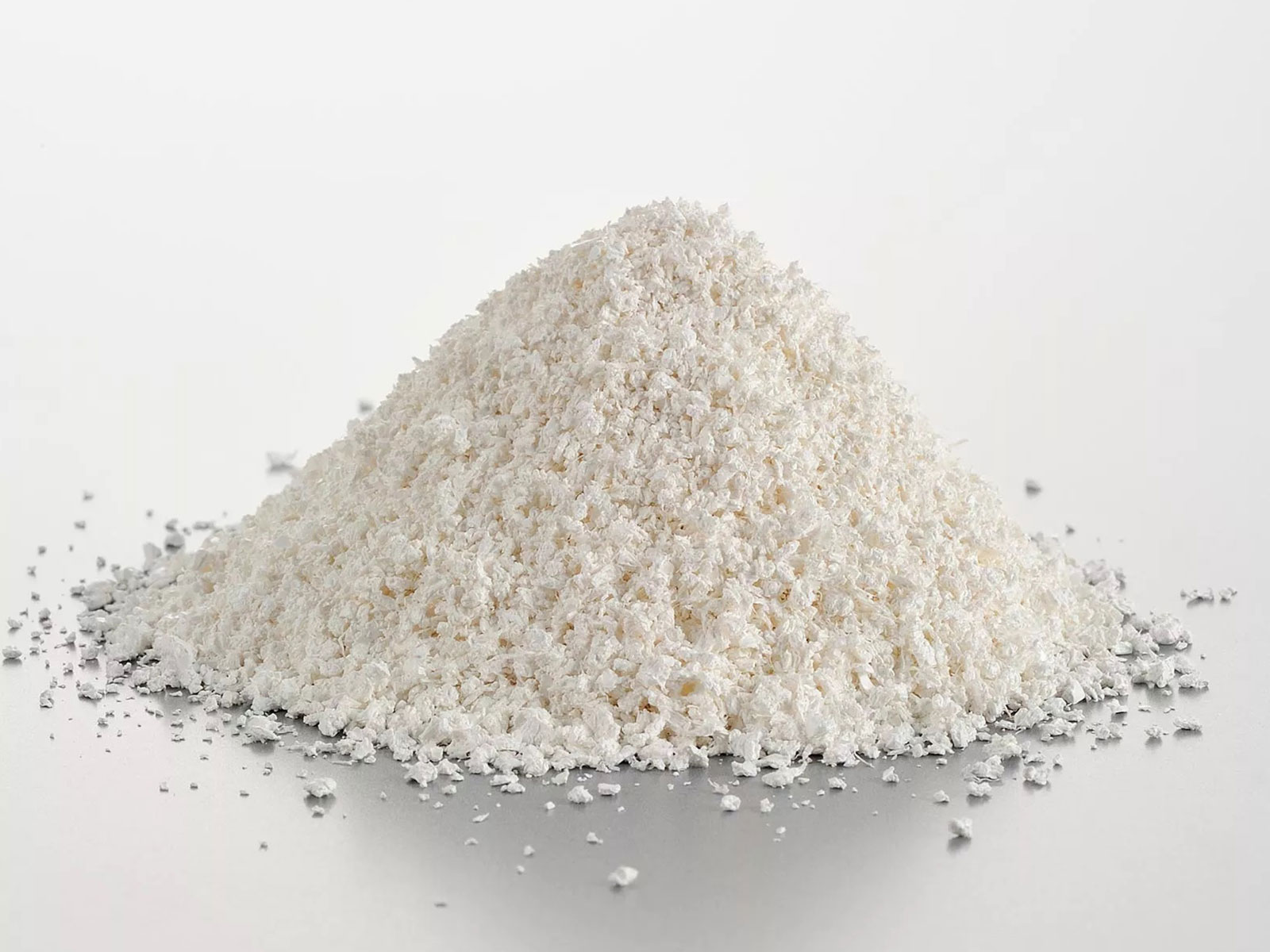

i770PF(PEEK Powder)

Coarse powder (particle size: 500μm-800 μm) Suitable for composite modification with MI=10~80 g/10min-1

Fine powder (particle size: 70μM-100μm) Suitable for composite modification, molded with MI=20-40 g/10min-1

Micro powder (particle size: 15μM-25μm) Suitable for composite modification, pre impregnation, spray coating with MI=70-80 g/10min-1
